Pipe Beveling Machines - ID Mounted
Purpose

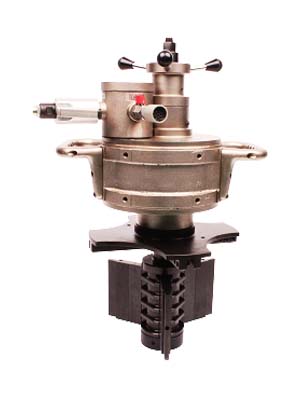

FLUIDCHEM’s ID Mounted Pipe Beveling Machines are designed and manufactured for portable use in mechanical weld preparation, making pipe beveling jobs easier to complete on-site or in the workshop. Our pipe beveling machines are affixed to the pipe with an inside clamping system. These pipe beveling machines are operated by one worker, who gives a manual feed to the pipe beveling machine with a lever.
These beveling machines are torque reactive. This means that the pipe or tube does not have to be fixed to be beveled, making it particularly useful on-site, in maintenance and repair situation. This is due to the design and strength of the thru shaft system that locks to the bore of the pipe.
For the weld preparation of wall pipes the weld edge end has to be beveled in a 0°, 30°, 37.5° outside or j-shape (inside 15°). Most companies use a heavy grinder for this work. This takes a long time, is not precise and creates terrible working conditions for the workers.
Dust, vibrations and noise physically harm the workers and the low quality weld preparation reduces the quality of the welding junction and long preparation time increases production costs. Instead we recommend you to use FLUIDCHEM’s Pipe Beveling Machines for this purpose.
Features
Expanding mandrel allows fast, accurate and self-centering alignment with torque-free operation for operator safety
Works on most materials and wall thickness.
Available with high quality Electric and Pneumatic Motors.
Tool Holder holds the beveling tool bits tightly at the desired position. Its robust construction and support to the cutting bits ensure vibration free performance.
High strength mandrel and large-area expanding block mostly improve the rigidity.
One or more bevel tools can be installed on tool holder and pipe can be worked synchronously.

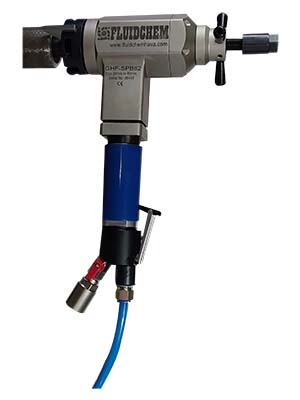

Our Pipe Beveling Machines are available with an electrical or pneumatic drive option.
Tools
Tool Bits for facing & beveling
HSS Tool bits 0°, 30°, 37.5°
(Other angles are also available on request)
Short and long tools available
Special Tools
Tool Bits for counter boring
HSS Tool bits 10° and 15°
(Short and long tools available on request)
Tool Bits for J-prep
HSS Tool bits 0°, 30° and 45°
(Customized tool bits available
on request)
Packing
All units are supplied complete with all gripping segments to cover the full range of the machine. Service tools, drawings, instruction manual and warranty certificate are also supplied as standard along with each machine.
Each machine is supplied in a protective metal carrying case
Benefits
High quality weld prep.
Consistent repeatable quality.
High productivity.
Ergonomic.
Quick, light and easy to set up and use.
Less noise, dust and sparks.
